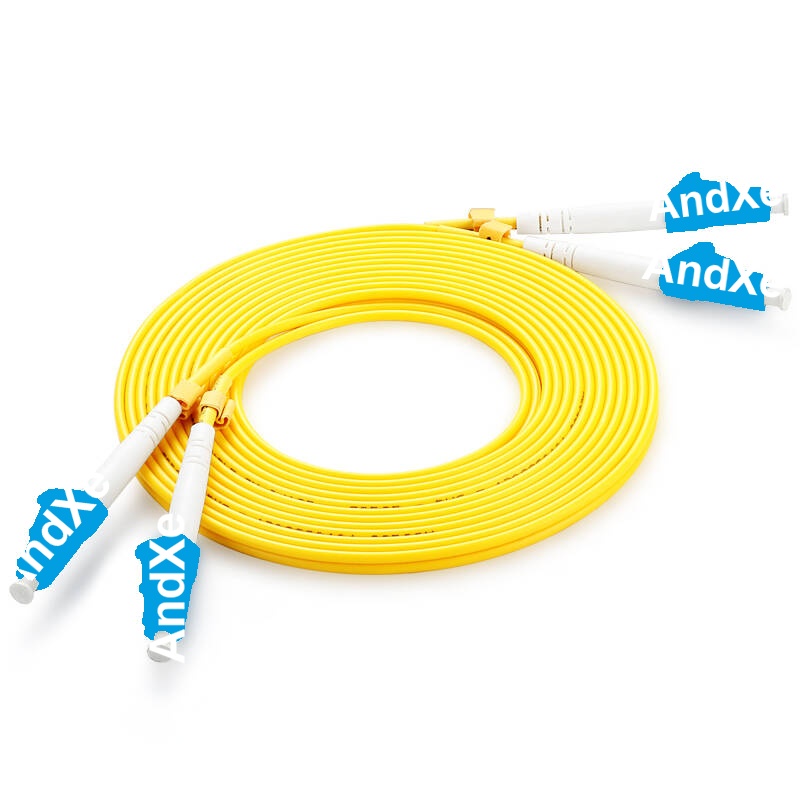

安科士 AndXe LC/UPC-LC/UPC SM DX 光纤跳线，接口 LC/UPC-LC/UPC。本产品工作温度商业级/工业级/军品级可选，适用于数据中心、运营商网络、企业网与园区网等场景，欢迎联系安科士 AndXe 销售人员获取详细规格书与报价。
产品规格参数
| 参数名称 | 参数值 |
|---|---|
| 产品型号 | 1M/3M/5M…… |
| 接口 | LC/UPC-LC/UPC |
| 工作温度 | 商业级/工业级/军品级可选 |
| 品牌 | 安科士 AndXe |
| 发货港口 | 成都 |
| 产品产地 | Made in China |
产品特征
- Low insertion loss and back reflection loss
- Good Durability
- Good exchangeability
- High temperature stability
- Standard: Telcordia GR-326-CORE
应用场景
- CATV / Metro
- Active device termination
- Telecommunication networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installations
- Wide Area Networks (WANs)
技术规格
- Insertion Loss: Typical≦ 0.2dB, Maximum≦0.3dB
- Return Loss :≧50dB (PC/UPC); ≧65dB (APC)
- Repeatability: ≦0.1
- Durability ≦0.2dB typical change, 1000 matings
- Interchangeability: ≦0.2dB
- Tensile Strength : >10kg
- Operating Temperature: -40 ~ 85℃
- Patch cord Order Information
- 模块搭配推荐：千兆单模光模块，万兆单模光模块
订购信息
| 参数名称 | 参数值 | |||||||
|---|---|---|---|---|---|---|---|---|
| Connector-1 | Polishing | Connector-2 | Polishing | Cable Type | Length | Cable Diameter | Fiber Count | Remark |
| SC | APC | LC | PC | OS2 | 5M | 2.0MM | Duplex | LSZH |
| FC,SC | PC,UPC | FC,SC | PC,UPC | OM1 62.5/125 | 0.5M | 0.9MM | Simplex | Colors |
| LC,ST | APC | LC,ST | APC | OM2 50/125 | 1M,2M | 1.8MM | Duplex | Armored |
| MU,MTRJ | MU,MTRJ | OM3 10G | 3M,4M | 2.0MM | 4,6,8 counts | Waterproof | ||
| A2000,MPO | A2000,MPO | OS1 | 5M,10M | 3.0MM | 12counts… | LSZH | ||
| SMA,DIN | SMA,DIN | OS2 9/125 | 100M… | Others | 48Counts… | PVC | ||
| G657A/B/D | 500M… | OFNR | ||||||
| G655 | 1000M… | OFNP |
本产品为 安科士 | AndXe 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
