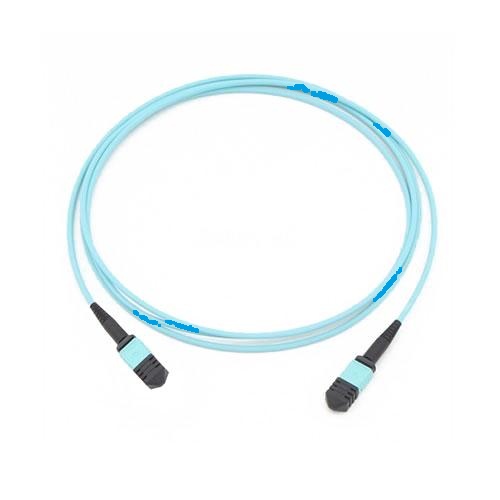

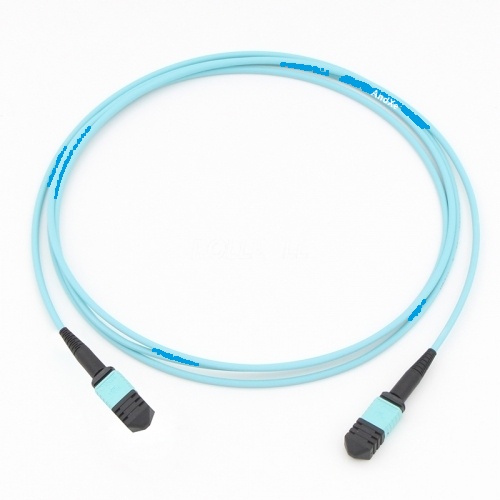

安科士 AndXe 12芯MPO-MPO OM3多模光纤跳线，接口 MPO。本产品工作温度商业级/工业级/军品级可选，适用于数据中心、运营商网络、企业网与园区网等场景，欢迎联系安科士 AndXe 销售人员获取详细规格书与报价。
产品规格参数
| 参数名称 | 参数值 |
|---|---|
| 接口 | MPO |
| 交付周期 | 请与销售确认交期 |
| 工作温度 | 商业级/工业级/军品级可选 |
| 品牌 | 安科士 AndXe |
| 发货港口 | 成都 |
| 产品产地 | 中国 |
产品特征
- 12芯MPO（母头）-MPO（母头）40G OM3 50/125多模光纤跳线
- Item Specifications:
- Ø Eliminate termination errors, Min installation time
- Ø Each cable is 100% tested for low insertion loss and back reflection
- Ø Optimized performance – Elite MPO and discrete premium connector
- Ø Support 40GBASE-SR4 in applicable parallel optics networks
- Ø Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard
应用场景
- Ø Data Centers with High Density Requirement
- Ø Fiber Channel Storage
- Ø Parallel Processing Applications
- Ø Telecommunications and Backbone Installations
- Fiber Optic Patch Cables:
- ETU offers high quality fiber cable assemblies such as Patch Cords, Pigtails, Breakout Cables etc. All of our fiber cables can be ordered as Single Mode 9/125, Multimode 62.5/125 OM1, Multimode 50/125 OM2 and Multimode 10 Gig 50/125 OM3/OM4 fibers.
- ETU also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc. Please feel free to contact sales@AndXetechnology.com.
- How to choose correctly the cable jacket: PVC, LSZH or OFNP?
- Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you’re going to run the cable.
- The features of PVC, LSZH and OFNP Jacket are as follows:
- Ø PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
- Ø LSZH cable has a special flam-retardant coating, it is between floors in a building.
- Ø OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.
- How to Choose The Right Fiber Optic Cable Type on OM3 or OM4?
- The difference of OM4 and OM3 fiber mode as the following
- Ø OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
- Ø The effective modal bandwidth for OM4 is more than double that of OM3.
- Ø For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
- Certification:
- 模块搭配方案：40G QSFP+光模块 万兆多模光模块
订购信息
| Connector | MPO to MPO | Gender | Female to Female |
|---|---|---|---|
| Fiber Mode | 50/125μm OM3 | Jacket OD | 3.0mm |
| Fiber Count | 12 | Wavelength | 850nm |
| Cable Length | 1m-30m | Jacket Color | Aqua |
| Cable Jacket | PVC | Insertion Loss | <=0.6dB |
| Durability | >=500 times | Return Loss | >=20dB |
| Operate Temperature | -40~75°C | Is_customized | Yes |
本产品为 安科士 | AndXe 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
