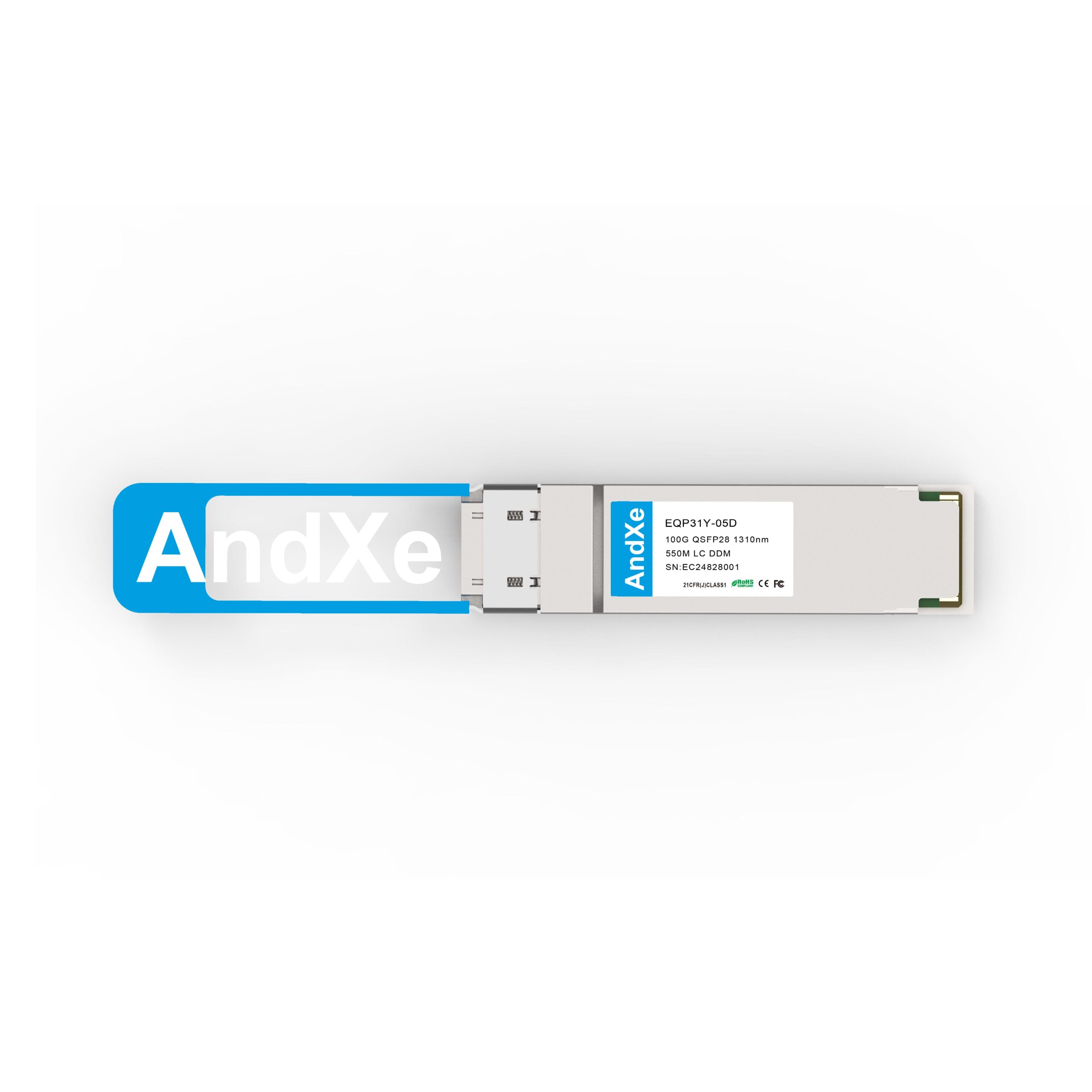

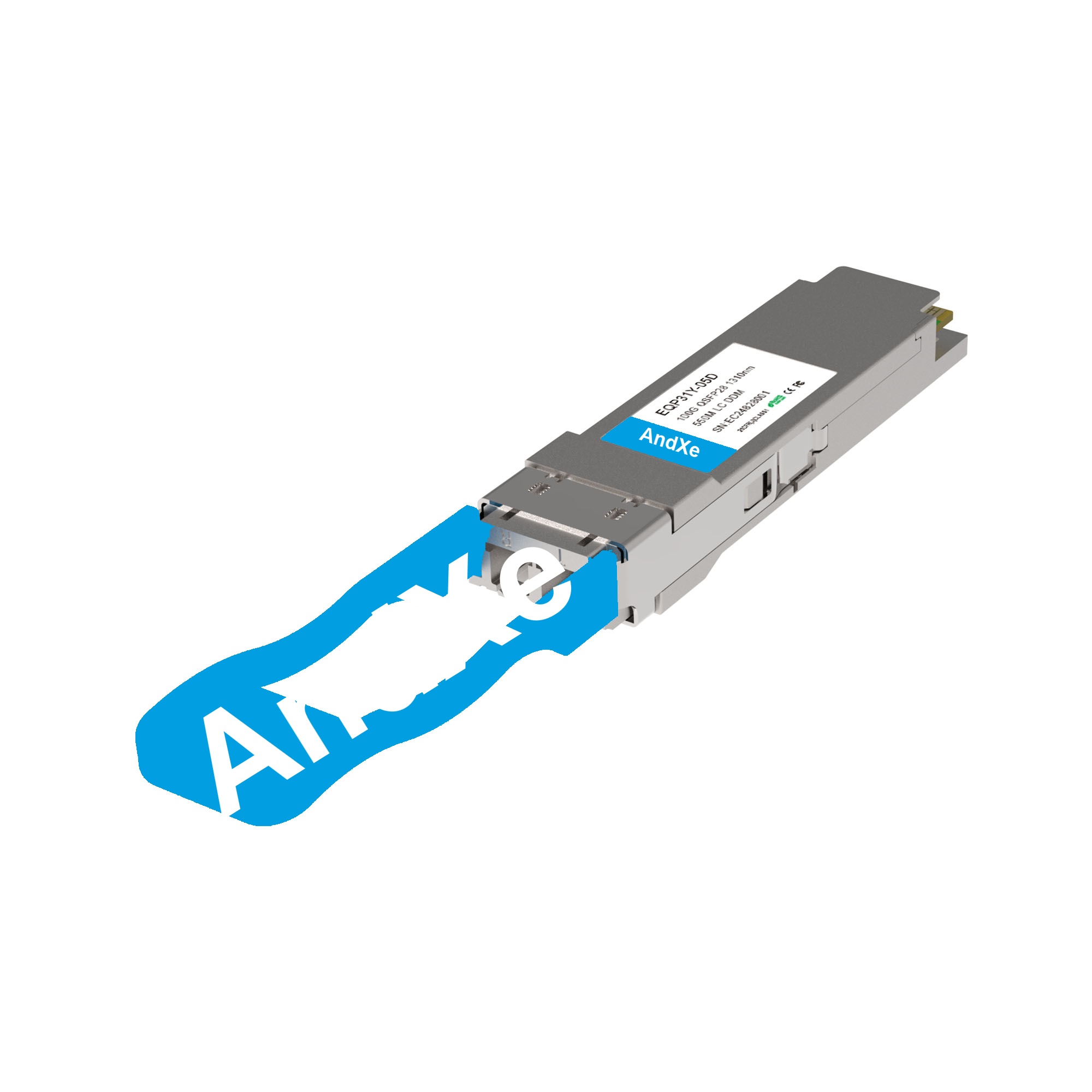

100G QSFP28 DR1 Single Lambda 500m LC 光模块

安科士 AndXe 100G QSFP28 DR1 Single Lambda 500m LC 光模块，传输速率 100G，波长 1310nm，传输距离 500M，接口 LC。本产品工作温度商业级/工业级/军品级可选，适用于数据中心、运营商网络、企业网与园区网等场景，欢迎联系安科士 AndXe 销售人员获取详细规格书与报价。

产品规格参数

参数名称	参数值
产品型号	AQP31Y-05D
传输速率	100G
波长	1310nm
传输距离	500M
接口	LC
商品库存	100
交付周期	请联系销售确认
工作温度	商业级/工业级/军品级可选
品牌	安科士 AndXe
发货港口	成都
产品产地	中国

产品特征

• 100G QSFP28 DR Optical Transceiver Product Specification
• Lane signaling rate 106.25Gb/s with PAM4
• Up to 500m transmission on SMF
• EML Laser and PlN receiver
• 4×25.78Gb/s with NRZ electrical interface (CAUl-4)
• Support KP4 FEC inside the module
• High speed l/O electrical interface
• l2C interface with integrated Digital Diagnostic monitoring
• QSFP28 MSA package with duplex LC connector
• Single +3.3V power supply
• Power consumption <3.5 W
• Operating case temperature: 0 to +70 °C

本产品为 安科士 | AndXe 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
