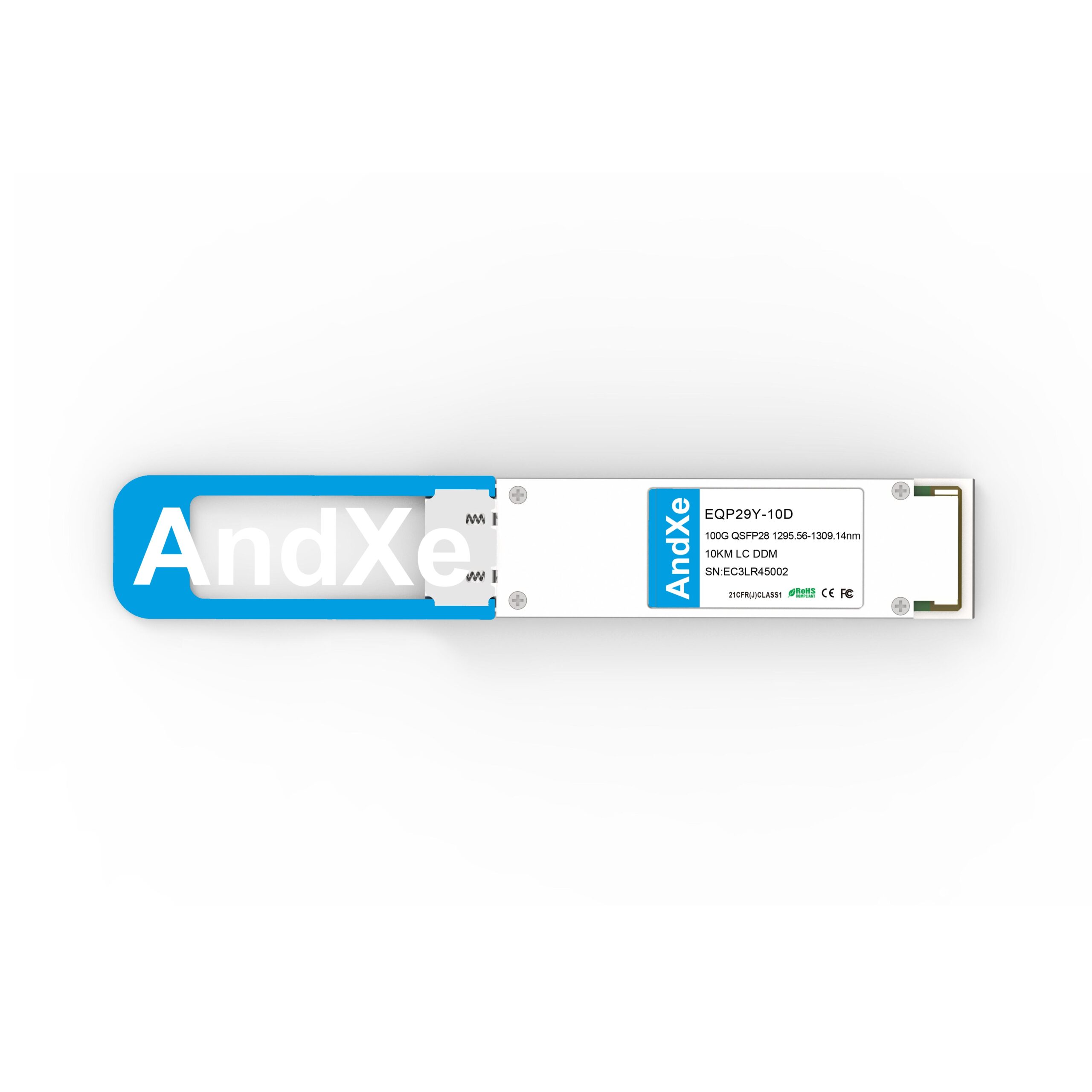

100G QSFP28 LR4 10km LC (BOX) 光模块

安科士 AndXe 100G QSFP28 LR4 10km LC (BOX) 光模块，传输速率 100G，传输距离 10KM，接口 LC。本产品工作温度商业级/工业级/军品级可选，适用于数据中心、运营商网络、企业网与园区网等场景，欢迎联系安科士 AndXe 销售人员获取详细规格书与报价。

产品规格参数

参数名称	参数值
产品型号	AQP29Y-10D(I)-D
传输速率	100G
传输距离	10KM
接口	LC
交付周期	请联系销售确认！
工作温度	商业级/工业级/军品级可选
品牌	安科士 AndXe
发货港口	成都
产品产地	中国

产品特征

• Support line rates from 103.125 Gbps;
• Transmission data rate up to25.78（NRZ） per channel;
• Up to 10km transmission on single mode fiber;
• High speed I/O electrical interface (CAUI-4);
• I2C interface with integrated Digital Diagnostic monitoring;
• QSFP28 MSA package with duplex LC connector;
• Single +3.3V power supply; Dissipation:
• Commercial(0~70)：< 4W
• Industrial(-40~85)：<5W
• Complies with EU Directive 2015/863/EU;

本产品为 安科士 | AndXe 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
