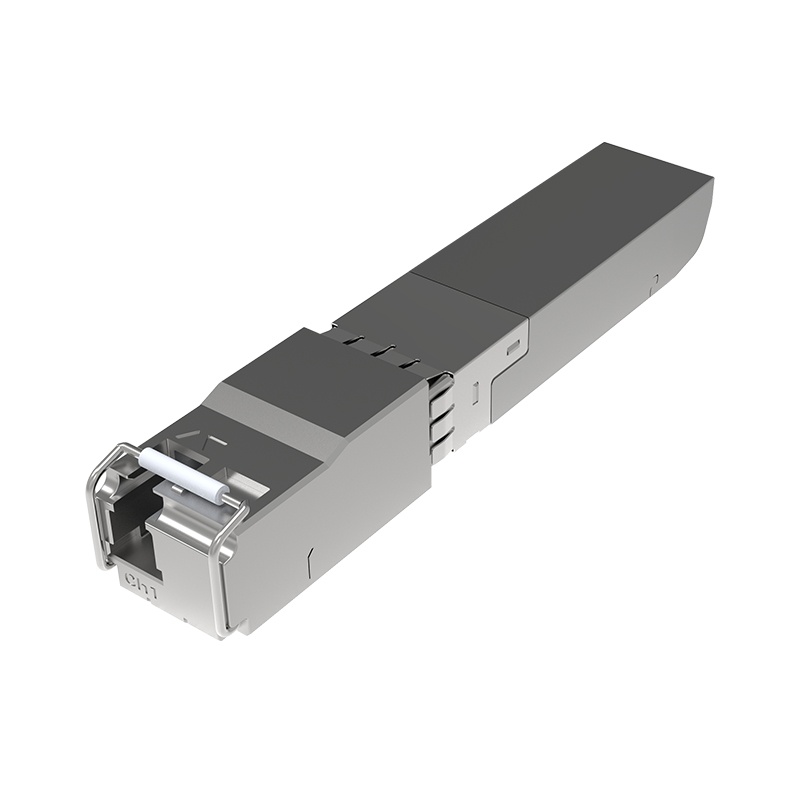

25G BiDi SFP28 80km LC 单纤光模块

安科士 AndXe 25G BiDi SFP28 80km LC 单纤光模块，传输速率 25G，传输距离 80KM，接口 LC。本产品工作温度商业级/工业级/军品级可选，适用于数据中心、运营商网络、企业网与园区网等场景，欢迎联系安科士 AndXe 销售人员获取详细规格书与报价。

产品规格参数

参数名称	参数值
产品型号	AB93(39)2X-80D
传输速率	25G
传输距离	80KM
接口	LC
交付周期	请与销售确认
工作温度	商业级/工业级/军品级可选
品牌	安科士 AndXe
发货港口	成都
产品产地	中国

产品特征

• Support data rate up to 25.78125Gb/s
• Hot-Pluggable SFP Footprint and Single LC Connector
• Up to 80km reach for G.652 SMF
• EML TX and Integrated SOA & PIN TIA RX
• Temperature Range:
• Commercial:0°C ~70°C
• Industrial: -40°C ~85°C
• Power consumption
• Commercial:2.2W
• Industrial:2.8W
• RoHS 6 compliance
• Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419
• Complies with EU Directive 2015/863/EU

本产品为 安科士 | AndXe 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
