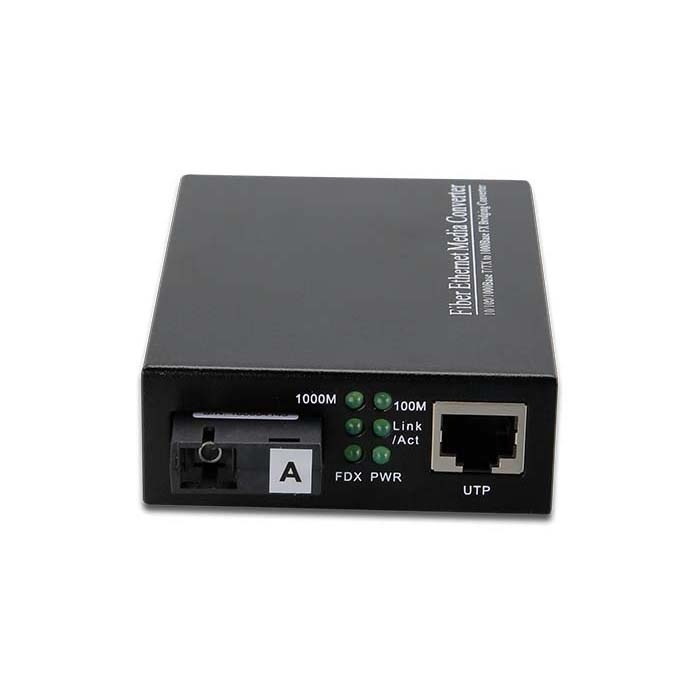

安科士 AndXe 10/100M 百兆双纤光纤收发器，传输速率 100M，传输距离 0.5~120KM，接口 SC。本产品工作温度商业级/工业级/军品级可选，适用于数据中心、运营商网络、企业网与园区网等场景，欢迎联系安科士 AndXe 销售人员获取详细规格书与报价。
产品规格参数
| 参数名称 | 参数值 |
|---|---|
| 传输速率 | 100M |
| 传输距离 | 0.5~120KM |
| 接口 | SC |
| 交付周期 | 请与销售确认 |
| 工作温度 | 商业级/工业级/军品级可选 |
| 品牌 | 安科士 AndXe |
| 发货港口 | 成都 |
| 产品产地 | 中国 |
产品介绍
- The unmanaged fiber media converter is designed with a switch controller and
- buffer memory that connects two types segments operation smoothly. The converter
- can be installed into 2U 19” converter rack-mount chassis for centralized power.
- Data Rate: 10/100Mbps, 10/100/1000Mbps.
- Fiber Type: 550M/2KM for Multimode;20/40/60/80/120KM for Single mode.
- Optic Connector: SC(default)/ST/FC/LC
产品特征
- 内置高效交换内核，广播过滤功能，流量控制，CRC错误校验
- 支持生成树进行容错网络
- 支持10/100Mbps或10/100/1000Mbps全/半双工自适应传输和自动协商，升级方便
- 最大传输距离可达120km。
- 外接电源或内置电源
- 单机型可安装到14slot 2U Rack； 卡式插入 16slot Rack
- 热插拔，可靠性高
- 缓存容量：1M Bits
- 内置MAC地址缓冲空间：1K
- Fiber Media Converter
- 1. Built-in efficient exchange kernel,Broadcasting filtration function,flow control,
- CRC error check.
- 2. Supports SPANNING TREE to conduct fault-tolerant Network.
- 3. Supports 10/100Mbps or 10/100/1000Mbps full/half duplex self-adaptive
- transmission and auto-negotiations, easy upgrades.
- 4. Max.transmission distance can be 120km.
- 5. External power supply or Built-in power supply.
- 6. Standalone type can be installed into 14slot 2U Rack; Card type into 16slot Rack.
- 7. Hot-swap,High reliability.
- 8. Cache capacity: 1M Bits.
- 9. Built-in MAC address buffer space: 1K.
- Standard Protocol
- IEEE802.3 Ethernet standard
- IEEE802.3u fast Ethernet standard
- IEEE802.3d Spanning Tree standard
本产品为 安科士 | AndXe 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
